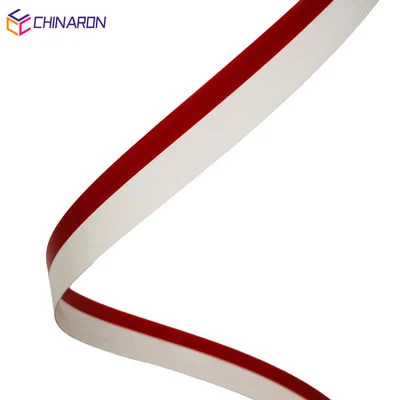

Waterproof 3D Side Light Pass Strips with 90%+ Light Transmission and IP65 Rating for Signage

Superior Optical Performance

1. Uniform Light Diffusion : Engineered for 90%+ light transmission with minimal hotspots, ensuring even illumination across letters.
2. High Transparency : Maintains clarity while diffusing LED light, eliminating the need for secondary diffuser layers.
3. Color Fidelity : Neutral base tone preserves RGB LED color accuracy for vibrant signage.

Manual Bending Flexibility

1. Heat-Assisted Shaping : Softens at 80-100°C (using heat guns or ovens), enabling cold bending without machinery .
2. Stress Resistance : Polymer chains realign during cooling, preventing cracks at bends (suitable for tight radii ≥5× material thickness).
3. No Jigs Required : Ideal for on-site adjustments or custom curved letters (e.g., arcs, circles).

Durability & Weather Resistance

1. Impact Strength : 15-25 kJ/m² notch impact resistance withstands handling and vibration.
2. UV Stability : Modified ABS resists yellowing and brittleness in outdoor environments (-30°C to +70°C).
3. IP65 Waterproof : Compatible with sealed LED modules and silicone encapsulation (e.g., Dow Corning 7091).

Cost & Production Efficiency

1. Reduced Tooling Costs : Eliminates CNC bending for simple shapes, cutting production time by ~40% .
2. Easy Processing : Cut with standard saws or shears,Glue-compatible (epoxy, cyanoacrylate),Paintable/printable surfaces.

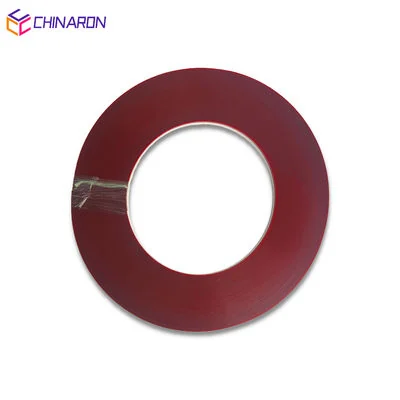

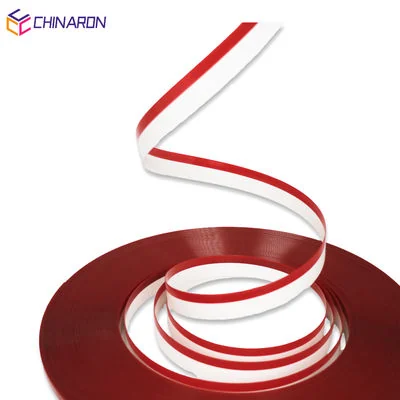

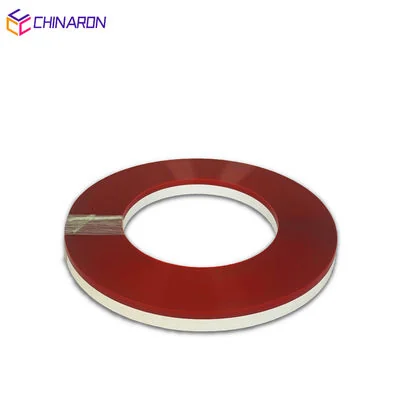

3. Roll Packaging: Ships in compact rolls (e.g., 100m lengths), lowering storage/transport costs vs. rigid profiles.

Design Versatility

1. Thin Profiles : Available from 3mm-20mm thicknesses for sleek edge-lit letters or halo effects.
2. Compatibility : Integrates with aluminum/PVC letter backs, acrylic faces, and LED modules (e.g., 12V SMD 2835).
3. Custom Lengths : Pre-cut or roll formats adapt to small/bulk projects.
